Every part is a part number.
The Ronin is an assembly, not a moulding. Any panel, frame, lens, fan or fastener on it can be bought on its own, because a helmet you can rebuild in the field is worth more than one you have to send back.
Prices are in US dollars and are indicative: they exclude shipping, duty and any export licensing, and are confirmed on the quote. Shipping is FedEx international from $185. Parts must be ordered to size and model. The Breacher and Respirator front frames are not interchangeable, and a Regular part will not fit a Large shell. Every model is upgradable, and parts are compatible across the range.
Tactical Full Helmet
The whole helmet, with the back helmet fitted. Ballistic Level IIIA to NIJ 0106.01, tested to stop .357 Magnum at 8.9 mm back-face signature and .44 Magnum at 11.39 mm.
- — NVG mount and 20 mm side rails
- — Detachable cheek plates, or the one-piece full mandible
- — Spare clear lens set and Flextech ballistic foam
- — Six-point buckle straps to run it as a mask
- — Four sizes: Regular Short, Regular Long, Large Short, Large Long
Armour, by the panel.
Every Level IIIA panel on the helmet is separately replaceable. A panel that has taken a hit comes off and a new one goes on, without the shell leaving service.
| Part | Detail | Price |
|---|---|---|
| Back Helmet | Rear ballistic panel with chin straps and rear Flextech foam. Fits the Breacher and the Respirator version. | $523 |
| Crown Extender | Level IIIA panel on three neodymium magnets, bridging the back helmet to the mask. Breacher and Respirator. | $160 |
| NVG Top Head Panel | Level IIIA crown panel carrying the NVG shroud. Solid: the fan system needs the vented panel's ducting, so the two do not go together. | $204 |
| Vented NVG Top Head Panel | The same panel, ducted for the top head ventilation system. | $204 |
| Full Mandible | One-piece Level IIIA lower face. Breacher version only. It replaces the whole five-piece magnetic cheek plate set. | $352 |
| Magnetic Cheek Plate Set | Ronin Breacher. Five detachable plates at $81 each: the chin, two cheeks, and two side plates with 20 mm Picatinny rails. | $407 |
| Cheek Plate Set, Ronin CS | The respirator version's set: ballistic cheek panels $95 each, side panels with rails $81 each. | $352 |
The structure underneath.
Two frames carry the helmet. The front frame holds the optics, the wiring and the mesh; the back frame sets fit and takes the straps. Both are sized, and the Breacher and Respirator front frames are different parts.
| Breacher Front Frame | With wiring set and mesh assembly, less Flextech foam. | $715 |
| Respirator Front Frame | Ballistic aramid with the Level IIIA mouth guard, with wiring set. | $792 |
| Back Frame Assembly | Chin straps and forehead straps, less Flextech foam. Fits all Ronin models to size. | $385 |
| Internal Wiring Set | For the mask frame. | $72 |
Lenses, frames and airflow.
The lens is a consumable. Frames take a pair of ANSI Z87.1 lenses and an optional micro jet fan that keeps them clear when the wearer is working hard in a sealed helmet.
| Lens Frame Set | A pair, with micro jet fan and a pair of lenses in any of the five tints. | $191 |
| Lens Frame only | Polyester resin, fire resistant. | $28 |
| Defogger Micro Jet Fan | For lens frames. | $39 |
| Ballistic Lenses, clear | Clear glass, and what the helmet ships with. ANSI Z87.1, pair. | $30 |
| Ballistic Lenses, smoked | Neutral density for bright sun. ANSI Z87.1, pair. | $30 |
| Ballistic Lenses, high contrast yellow | Lifts contrast in flat and low light. ANSI Z87.1, pair. | $30 |
| Ballistic Lenses, high contrast red | Lifts contrast against green and brown ground. ANSI Z87.1, pair. | $30 |
| Ballistic Lenses, marine blue | Mirrored, for glare off water and snow. ANSI Z87.1, pair. | $30 |
| Top Head Ventilation System | One 9 V battery, about two hours at high speed. Remove the battery when it is not in use. | $198 |
Filtration and powered air.
The Respirator version takes 3M bayonet cartridges as standard. For CBRN work it also accepts the MIRA Safety TAPR, which puts the helmet on 40 mm NATO threaded filters and opens up powered air.
| Part | Detail | Price |
|---|---|---|
| 3M 6000QL respirator | Mask only. | $55 |
| 3M 60926 cartridges | One pack, a pair. Multi-gas and vapour. | $65 |
| 3M bayonet cap | Blanks one port so the helmet runs on a single filter. | $20 |
| MIRA Safety TAPR | Developed with Czech special forces. 40 mm NATO threaded filters, compatible with the MIRA gas mask microphone and the MB-90 PAPR. | $325 |
| MIRA Safety MB-90 PAPR | 90 L/min of constant airflow on standard AA cells, up to twelve hours. | $560 |
| MIRA Safety NBC-77 filter | Twenty-year shelf life, NATO-issue filtration against a wide CBRN range. | $90 |
What mounts to the rails.
Comms and a scope camera, on the helmet's own rails and its internal wiring rather than on straps over the top of it.
CLARUS XPR headset
Hear-thru with impulse noise protection and extended sound localisation. −40 °C to +72 °C, tested to MIL-STD-810F, 20 m immersion on the control box. About 40 hours on internal AAA.
RunCam Scope Cam 2 4K
1/2.5" Sony 8 MP sensor, 4K30 to 1080p120, Picatinny mount, IP64. About 160 minutes at 2.7K60.
HDMI to Lightning / USB-C
Takes the RunCam's HDMI output to a phone.
Six-point buckle straps
Converts the helmet into a mask by carrying the front section on straps instead of the back helmet.

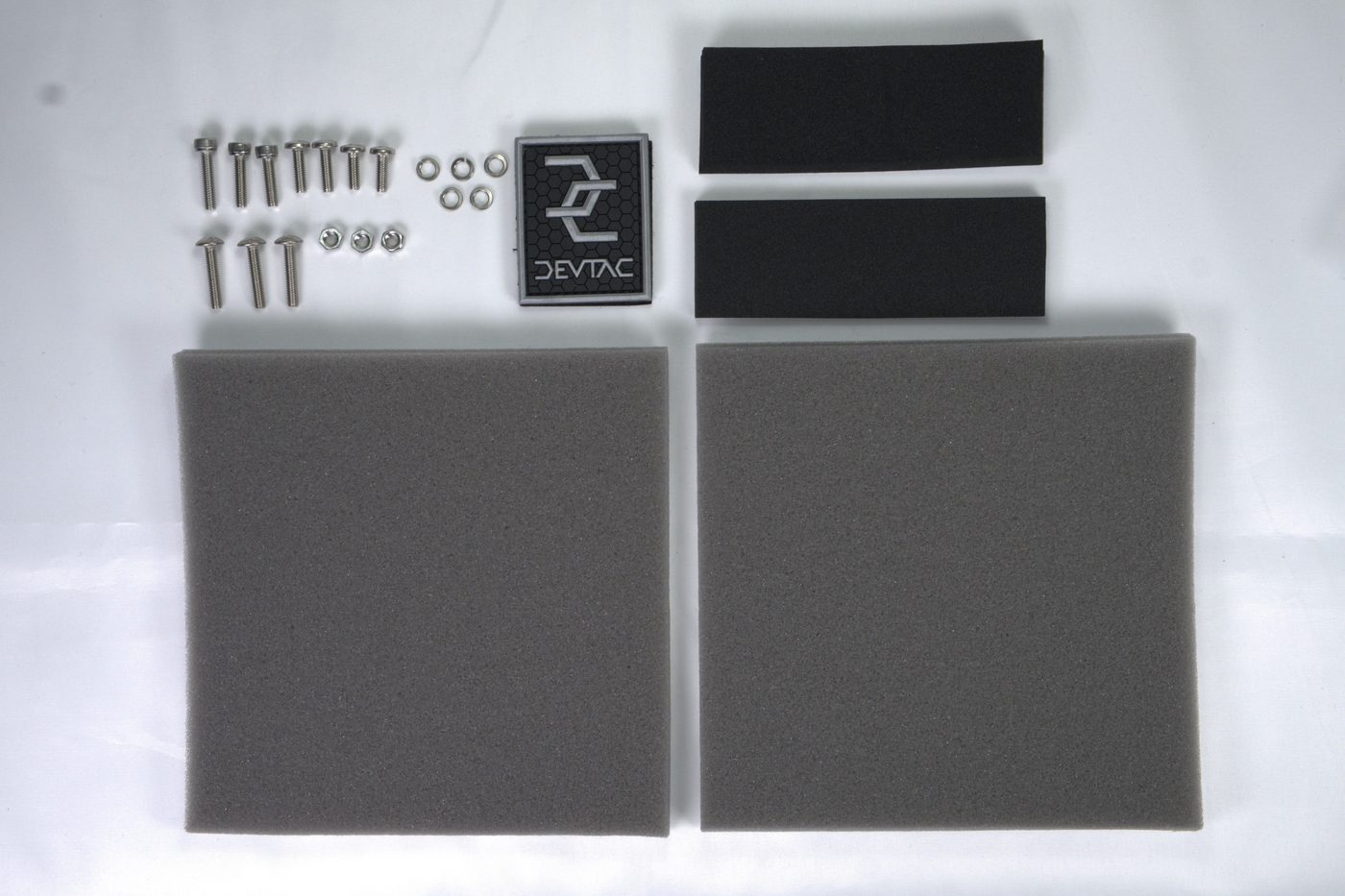

Consumables.
Padding, straps and fasteners wear out first. They are all stock sizes, and most of them you can source locally if you would rather not wait for a shipment from Japan.
| Flextech foam padding, 7 mm | $66 |
| Flextech eye foam seal: defogging, smoke and vapour | $13 |
| Flextech sizing pads, 7 mm, for the back helmet | $17 |
| Soft urethane adhesive foam, 10 mm | $8 |
| Rubber spacing foam, 10 mm, 4 × 10 cm | $3 |
| Urethane adhesive foam sheet, 1 mm, 10 × 10 cm, wiring cover | $4 |
| Chin straps, polyester, quick-release buckle | $17 |
| Bungee | $3 |
| Forehead straps, 50 cm × 20 mm × 2 mm | $4 |
| Stainless Phillips pan head screws, 4 mm, 12 / 14 mm | $0.55 ea |
| Stainless socket head cap screws, 4 mm, 15 / 16 / 18 mm | $0.55 ea |
| Stainless spring washers, 4 mm, set of five | $2 |
Adhesive tapes and other materials not listed are supplied on request. Most are stocked by any hardware or stationery shop.
Order spare parts.
Pick what you need and how many. Parts are made to size, so tell us which helmet they are for on the next step. We confirm size and fit before anything is charged.
Prices are the published parts-list figures in USD and exclude duty and any export licensing. Shipping is FedEx international from $185, quoted for your destination before anything is charged. Ordering a complete helmet instead? Configure one.
Ordering.
Tell us the model, the version and the size, and list what you need. If you are not sure which size you are on, the serial on the maker's badge inside the shell tells us. Build a specification in the configurator and it comes through with the enquiry.
